M750 SERIES HVLS FANS

The M750 Series, which combines outstanding energy economy with strong performance characteristics, represents a substantial leap in industrial cooling technology. This revolutionary fan uses a modern permanent magnet synchronous motor (PMSM) to provide excellent cooling at a maximum speed of about 700 watts. Large industrial settings and other expansive locations are a perfect fit for the M750 because of its exceptional performance and efficiency balance.

Get A Quote

The M750’s energy-efficient design offers substantial long-term cost savings, ensuring a rapid return on investment. Furthermore, the series has been engineered with installation simplicity in mind. It features an integrated Human-Machine Interface (HMI) conveniently located at ground level, significantly reducing installation and maintenance expenses. The streamlined design requires only a single cable running from ceiling to floor for operation, further simplifying the installation process.

In terms of functionality, the M750 Series excels in providing comfortable, low-noise air circulation during warmer months while effectively equalizing temperatures in colder seasons. It is optimally designed for large-scale spaces with ceiling heights ranging from 23 feet (7 meters) to 50 feet (15 meters). To accommodate various architectural requirements, the M750 Series is available in diameters spanning from 16 feet (4.8 meters) to 24 feet (7.2 meters).

This combination of advanced technology, energy efficiency, and versatile sizing options positions the M750 Series as a premium solution for industrial and large-scale cooling needs.

Call Us Today

PRODUCT DETAILS

Fan Models \ Specifications Diameters Number of Blades Weight Max Rotation Speed Max Airflow (AMCA 230-15) * Max Airflow (AMCA 230-99) * Power Usage(Watt) Covered Area(m2) Recommended  Blade Height (m)
M750-16 16 ft (4.9m) 5 100 kg 78 RPM 238,844 m³/h 337,725 m³/h 413 600 22.9 - 32.8 ft (7- 10 m)
M750-18 18 ft (5.5m) 5 104 kg 69 RPM 285,877 m³/h 404,230 m³/h 490 750 22.9 - 32.8 ft (7- 10 m)
M750-20 20 ft (6.1m) 5 108 kg 60 RPM 367,859 m³/h 520,153 m³/h 580 920 22.9 - 32.8 ft (7- 10 m)

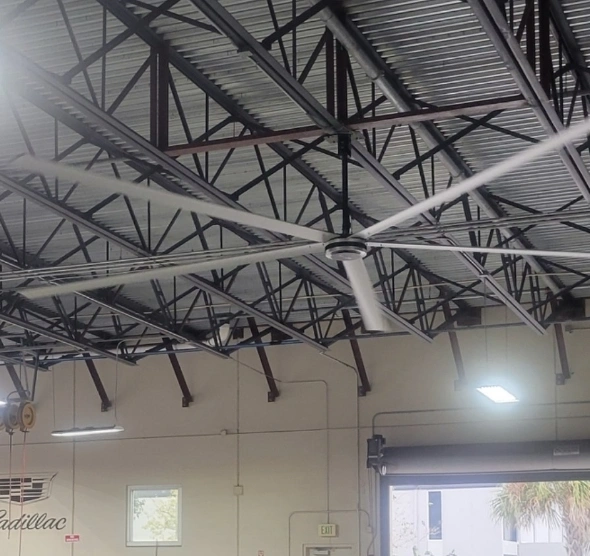

M750-24 23.95 ft (7.3m) 5 113 kg 57 RPM 537,226 m³/h 759,695 m³/h 835 1300 22.9 - 32.8 ft (7- 10 m)

GENERAL SPECIFICATIONS

Voltage 208VAC - 240VAC Single Phase, 50Hz / 60Hz
Sound @ Max Speed <50 dBA
IP Rating IPX5 Indoor/Outdoor
Temperature Rating -10℃ / +50℃
Certifications CE, CN, IEC Certification
Controller Forward direction 0-100%
Mounting Fully Adjustable
Mount to Blades Height 1m Standard
Warranty 3 Years on all Parts - Extended Warranty Optional

Motor Technology: Direct Drive Technology

Advantages

  • No oil
  • No seals to leak
  • Only 2 moving parts
  • Low noise
  • Low energy consumption
  • Low weight

Transverse Flux Machine Motor Type

Advantages

  • Lighter weight
  • High torque density
  • Smaller package
  • Low energy losses

FEATURES

  • 5 anodized aluminium blades
  • Availability in custom-painted colors
  • Quick and easy installation
  • Schedule and timer modes available
  • Energy-efficient operation
  • Made in Europe
  • Network HMI for up to 10 fans
  • Conforms to CE, EN, and IEC standards
  • 10-speed settings
  • Multiple redundancies in all critical components,
  • Reverse mode for destratification
  • Includes blades, motors, electronics, and mount

BENEFITS

  • Maximizes HVAC system efficiency
  • Lowers energy consumption
  • Decreases energy costs
  • Lowers your carbon footprint
  • Improves indoor air quality
  • Increases thermal comfort in summer and winter
  • Extremely quiet operation
  • Reduces mental fatigue
  • Improves worker productivity

CONTROLLER

HMI BI 1-20 Controller

  • Compatible with M650 and M750
  • Integrated wall mount design
  • LCD display
  • Up to 20 Refresh Fans can be easily operated using this digital controller
  • Easy command for forward functions with 7 speed levels
  • Multi-function potentiometer with LED status indicator
  • Wireless remote control (optional)
  • Built-in smart Internet of Things (IoT) module (optional)
