Energy Savings Analysis: Calculating ROI on HVLS Fans in Manufacturing Plants

Every capital investment for facility managers in manufacturing is a numbers game. One of the few upgrades where the math works in your favour is High-Volume, Low-Speed (HVLS) fans. Manufacturers need to understand how to calculate the return on investment before signing a purchase order.

Why Manufacturing Plants Are the Ideal Environment for HVLS Technology

Manufacturing facilities share a set of characteristics that make them particularly receptive to HVLS fan technology: high ceilings, large open floor plans, significant heat loads from machinery, and workers who need constant thermal comfort to remain productive. Traditional HVAC systems are not well-suited to these conditions. They are designed to condition small, closed spaces, and not 50,000-square-foot production aisles with 30-foot ceilings.

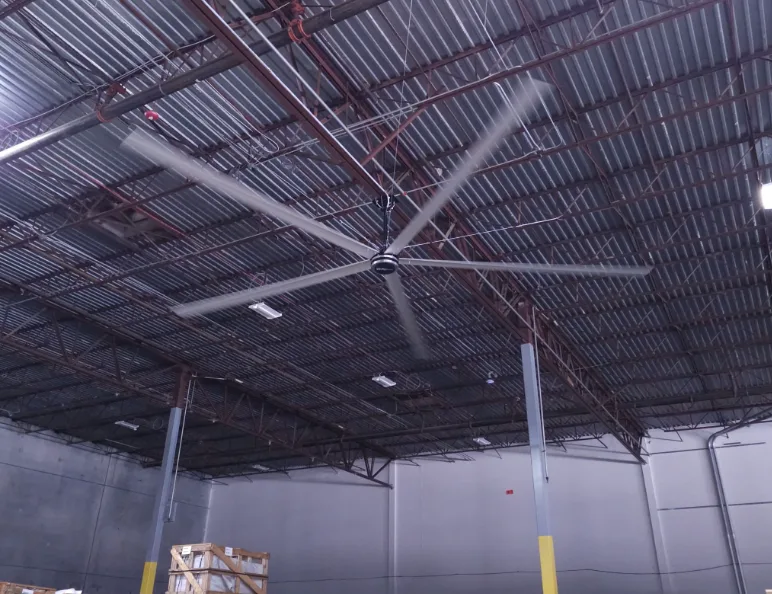

HVLS fans solve a fundamental physics problem. Warm air rises. In tall industrial buildings, the warm air settles well above the workers and equipment that require conditioning. A single large-diameter HVLS fan (typically 7 to 24 feet in diameter) moves at a slow speed, enough to avoid causing wind-chill discomfort, but capable of moving enough air volume to destratify the entire space, pushing the warm air towards the floor in winter and creating a cooling breeze effect in summer.

Understanding the Cost Baseline: What You’re Spending Now

Before you calculate ROI, you need to have an accurate picture of your current energy costs. Take, for example, a mid-sized manufacturing plant of around 80,000 square feet. There are three categories of primary contributors to air management costs: the operation of the HVAC, the fuel needed to heat the air (for de-stratification in winter), and supplemental spot cooling using high-speed pedestal fans or portable units.

A spend of $0.30 per sq ft per year on climate management for an 80,000-sq-ft plant would result in a baseline energy cost loss of about $24,000 per year, without accounting for the efficiency of stratification or seasonal overloading of the HVAC.

Building the ROI Model: A Practical Framework

ROI for HVLS fans is calculated based on four key areas of savings. Each of these is quantifiable, and when combined, they make a strong financial case.

1. HVAC load reduction. HVLS fans enable facility managers to set the thermostat setpoints to a higher temperature (4–6°F) during summer without any visible change in the comfort of the workers due to the cooler air moving around. The US Department of Energy estimates that cooling bills will be saved by approximately 3%, per degree of thermostat increase. A rise of 4°F would save 12% in cooling energy, or roughly $2,880 per year on a $24,000 baseline.
2. Heating destratification savings. In a facility with 25-foot ceilings, during the winter months, a temperature difference of 5–10°F can be observed between the floor level and the ceiling, as warm air rises to the ceiling. This must be compensated for by the heating systems working harder and for longer. HVLS fans are then used to further mix this stratified air, thereby saving 20-30% of heating needs. It will save $1,600-$2,400 per year for a plant that spends $8,000 per year on gas heating in the winter.
3. Elimination of auxiliary cooling units. Most manufacturing plants run banks of high-speed pedestal or column fans to cope with hot spots near machinery. They are energy-intensive: a standard ¼ HP pedestal fan running 10 hours a day costs around $110 per unit of energy per year. Approximately $1,650 can be saved annually in addition to maintenance and replacement costs by replacing 15 such units with HVLS fans.

KEY INSIGHT:

The same amount of air drawn by 10 to 20 standard high-speed fans can be moved by a single 20-foot HVLS fan, which consumes roughly 1 kW of power, saving 5-10 times the electricity. Its efficiency is not incremental, but structural.

4. Worker productivity and retention. This is the least considered factor when calculating ROI, yet it may be the most significant calculation. Further evidence supporting this can be found in research published in the journal Ergonomics, which demonstrates that thermal discomfort is consistently associated with reduced cognitive performance, increased error rates, and higher employee turnover. For a manufacturing company, a 1% increase in productivity across a 50-person workforce earning an average wage of $45,000 per year would imply a value recovery of $22,500 a year.

Sample ROI Calculation: 80,000 Sq Ft Plant

The following is an example calculation for a mid-sized manufacturing facility with six HVLS fans installed to achieve complete coverage.

The effective payback period is often less than two years when productivity gains are considered, even on a more conservative basis of 0.5% of the working population. The net financial advantage of the facility may be well over $50,000 direct savings over a 10-year equipment lifespan.

Variables That Shift the Calculation in Your Favour

Many factors can significantly increase the ROI of your specific facility. Climates with significant seasonal temperature fluctuations see greater destratification benefits. The payback period will be shorter in facilities with high internal heat loads from machinery. Multi-shift facilities have extended operating time, which enhances payback. And facilities that are already incurring costs from the overuse of HVACs, or from maintenance or equipment replacement, will see additional indirect savings.

Another program worth considering is utility rebate programs. North America and the UK have many energy suppliers offering commercial rebates for a certified energy-efficiency upgrade. HVLS fans usually qualify, reducing the net installation cost by $500-$2,000 per unit and shortening the payback period.

The Bottom Line for Facility Managers

HVLS fans are not a comfort addition; they are an energy infrastructure decision with a measurable financial payback. With the numbers modelled correctly: energy savings, equipment consolidation, and productivity improvements, the case for installation in a manufacturing facility is rarely in doubt. The question is not whether the investment is profitable. It is how quickly it pays off.

The most effective next step is a facility-specific energy assessment. With accurate square footage, ceiling height, current energy spend, and workforce data, it is possible to produce a credible ROI model in a matter of hours, one you can bring directly to a capital expenditure review with confidence.

Ready to run the numbers for your facility? Refresh Fans offers free energy-savings assessments tailored to your plant’s specifications, so you can walk into your next capital expenditure review with confidence.

FAQs

1. How long does it typically take for an HVLS fan investment to pay for itself?
   Most manufacturing facilities see a full payback within 2–4 years through energy savings alone. When productivity improvements and elimination of supplemental cooling units are included, the effective payback period often drops below two years.
2. How many HVLS fans does a manufacturing plant actually need?
   Coverage depends on ceiling height and fan diameter. A 20-foot fan typically covers 20,000–25,000 square feet. Most mid-sized plants of 80,000 square feet require five to seven fans for complete, even airflow across the production floor.
3. Will HVLS fans reduce our heating costs as well as our cooling costs?
   Yes. In winter, HVLS fans push warm air trapped near high ceilings back down to floor level. This destratification reduces heating runtime by 20–30%, delivering meaningful savings on gas or electric heating bills throughout the colder months.
4. Can HVLS fans replace our existing HVAC system entirely?
   No, HVLS fans complement, rather than replace, HVAC. They reduce the load on your system, allowing it to run less frequently and at higher setpoints. The result is significantly lower energy consumption without any loss of climate control effectiveness.
5. Are there utility rebates available for installing HVLS fans in a commercial facility?
   Many utility providers offer commercial energy-efficiency rebates that HVLS fans qualify for. Rebates typically range from $500 to $2,000 per unit, reducing your net installation cost and shortening the payback period considerably. Availability varies by region and provider.
6. How do HVLS fans impact worker productivity in a manufacturing environment?
   Consistent airflow reduces heat stress, improving focus, reducing error rates, and lowering fatigue during long shifts. Even a 0.5% productivity gain across a 50-person workforce can generate over $11,000 in annual recovered value, often exceeding direct energy savings.
