One of the most important, yet misunderstood, aspects of HVLS fan selection is ceiling height. When chosen properly, it provides an efficient air circulation in high spaces. Improper selection means poor coverage, energy waste, and uncomfortable working conditions.
Why Ceiling Height is the Starting Point for Every HVLS Specification
Facility managers tend to focus on floor area when assessing HVLS fans. Although the floor area plays a role, ceiling height is the most important factor in determining blade diameter, downrod length, speed settings, and the number of fans needed. Ignoring ceiling height will prevent the system from performing at its best, even after adjustments.
HVLS fans do not produce the same airflow as high-speed fans. Their slow rotation forms a wide, smooth column of air that stretches across the floor, up the walls, and all the way back to the fan, creating a cyclic circulation pattern. Taller ceilings increase the distance to the floor, and the fan size must be selected to ensure effective airflow on the floor.
This is why two facilities with the same floor area but different ceiling heights face different specification issues. The 50,000-square-foot distribution centre and the 50,000-square-foot warehouse would have completely different fan diameters, mounting layouts, and coverage proposals. The misperception of comparing them with each other is a specification error, which manifests in their actual performance.
The Physics of Air Movement in Tall Spaces
The height of the ceiling greatly affects HVLS performance due to fundamental physics. Air exiting a huge but slowly rotating fan loses momentum as it descends. Momentum loss rate depends in particular on the fan diameter, the blade-tip speed, and the distance the air travels.
| 10-16 ft
Low ceilings: smaller fans, tight blade clearance management |
16-30 ft
Mid-range: the proven sweet spot for HVLS performance |
30 ft+
High ceilings: larger diameter fans, extended downrods essential |
10 ft
Minimum recommended blade-to-floor clearance in any installation |
Low Ceilings: 10–16 Feet
Low-ceiling environments, such as small distribution hubs, retail back rooms, livestock housing, and single-storey production facilities, can benefit from HVLS fans. However, precise sizing is essential, as the margin for error in airflow is smaller than in mid-range applications.
The main risk of low ceilings is excessive air velocity at floor level. Large fans may cause undesirable wind-chill effects, particularly in winter or in areas with fine particulates. For 10-16-foot ceilings, 8-12-foot-diameter fans are typically appropriate, and speed controllers should be finely tuned during installation.
Blade clearance is also critical. Industry safety standards require at least 10 feet between the blade tip and the finished floor. With a 14-foot ceiling, this allows only a 4-foot downrod before the fan body, so the selection must account for the full motor housing height. Accurate ceiling height measurements at multiple locations are essential before specifying any fan.
Mid-range Ceilings: 16–30 Feet
HVLS fans are ideal for ceilings 16 to 30 feet high and are commonly found in manufacturing plants, warehouses, gyms, and large retail areas. The height will enable the air column to grow to its full size without losing much momentum. Common fan sizes of 14 to 20 feet usually match the spacing of the structural columns, making installation easier.
For ceilings in this range, facility managers should focus on selecting the right fan diameter for the coverage area and determining the number of fans needed to avoid dead zones. A 20-foot fan at optimal height typically covers 22,000–25,000 square feet in open spaces, though coverage decreases with obstructions such as racking or partitions.
For ceilings between 24 and 30 feet, consider using an extended downrod to lower the fan rather than mounting it flush to the ceiling. Lowering the fan to 20–22 feet increases floor-level air velocity and can reduce the number of fans needed, lowering both installation and energy costs.
High Ceilings: 30 Feet and Above

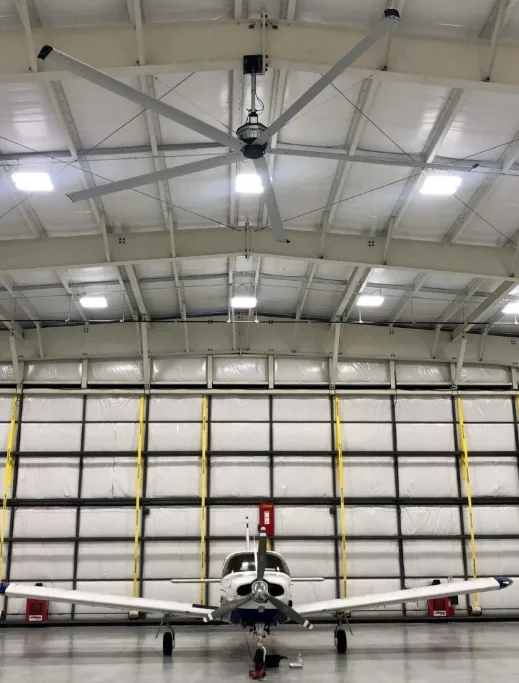

High-ceiling facilities such as aircraft hangars, logistics hubs, steel plants, arenas, and bulk storage buildings present the most challenging HVLS specifications. The large vertical distance makes airflow momentum management critical. Undersizing the fan or mounting it at ceiling level instead of using a downrod are the most common causes of underperformance.
For ceilings 35 feet and higher, 20–24-foot diameter fans are usually necessary. These larger fans produce a wider, stronger air column that maintains velocity over longer distances. Extended downrods, often lowering the fan 10 to 20 feet below the ceiling, are standard to achieve an effective mounting height of 20–28 feet.
Structural loading is a major engineering concern for large-diameter HVLS fans, which can weigh 200–400 lbs plus dynamic loads. Older buildings may require reinforcement to support this weight. Every high-ceiling HVLS project should include a structural review before installation, and reputable installers will require it.
How Ceiling Height Multiplies Heating Costs
Ceiling height affects more than summer cooling. In winter, it significantly impacts heating efficiency and costs, a factor often overlooked by facility managers when assessing energy expenses.
Warm air naturally rises, creating a temperature difference between the ceiling and floor. In a 14-foot ceiling, this difference may be 3–5°F, while in a 35-foot ceiling, it can reach 10–15°F or more. As a result, heating systems must work harder to maintain comfort at floor level, as much of the heat accumulates near the roof.
HVLS fans eliminate temperature gradients by continuously mixing air from floor to ceiling. This redistribution allows heating systems to maintain comfort at lower output. For example, a tall facility spending $15,000 annually on heating can save $3,750 per year with a 25% reduction, often exceeding the summer cooling benefit, especially in colder climates.
Obstructions, Mezzanines, and Non-uniform Ceiling Heights
Most industrial facilities have obstructions such as overhead cranes, mezzanines, racking, structural steel, fire suppression pipes, and HVAC ductwork. These elements disrupt airflow, impacting fan placement, coverage, and the number of units needed.
Overhead cranes require fan placement to consider the crane’s full travel path, including horizontal range and maximum hook height. Mezzanine floors divide the facility into separate airspace zones, each needing independent fan sizing. Facilities with varying ceiling heights must treat each zone as a separate specification; a single fan size will not suit all areas.
Matching Ceiling Height to Fan Parameters
| Ceiling height | Recommended fan diameter | Optimal mounting height | Primary considerations |
| 10-16 ft | 8-12 ft | 10-12 ft from floor | Floor velocity and blade clearance for tight tolerances throughout |
| 16-24 ft | 14-18 ft | 14-20 ft from floor | Standard HVLS performance range (most efficient cost-per-sq-ft outcome) |
| 24-30 ft | 18-20 ft | 18-24 ft from floor | Downrod drop selection required (avoid ceiling-flush mounting) |
| 30 ft+ | 20-24 ft | 20-28 ft from floor | Structural loading review required before installation proceeds |
What a Proper Site Assessment Should Capture
Due to ceiling height variation, obstructions, and structural constraints, a thorough site assessment is essential for accurate performance projections and ROI calculations. Measure ceiling height at multiple locations, as it often varies. Document all overhead obstructions, crane paths, HVAC ductwork, structural load ratings, and any planned changes to racking or mezzanines that could affect fan placement.
Ceiling height is the primary consideration in HVLS fan selection, as all other specification decisions depend on it. Facilities that conduct thorough assessments achieve better coverage, lower energy use, and faster payback than those relying on general estimates. The technology is effective when supported by quality specifications.
Unsure which fan best suits your facility’s ceiling height?
Refresh Fans provides site assessments and expert specification support for facilities of all sizes.
FAQs
- Does ceiling height affect which HVLS fan diameter I should choose?
Yes, directly. Taller ceilings require larger-diameter fans to generate an air column with sufficient momentum to reach the floor effectively. A 10–16 ft ceiling suits 8–12 ft fans; ceilings above 30 ft typically need 20–24 ft diameter units. - What is the minimum safe clearance between an HVLS fan blade and the floor?
Industry safety standards require a minimum of 10 feet between the blade tip plane and the finished floor. In low-ceilinged facilities, this constraint significantly narrows product selection and makes precise ceiling-height measurement essential before specifying. - Should I mount the fan at ceiling level or use a downrod to drop it lower?
Always use a downrod in tall spaces. Dropping a fan to an optimal mounting height of 20–28 feet in a high-ceiling facility can increase floor-level air velocity by 30–40%, outperforming a ceiling-flush installation at a fraction of the added cost. - How does ceiling height affect heating costs in winter?
Taller ceilings trap more warm air near the roof, creating floor-to-ceiling temperature gradients of up to 15°F. HVLS fans continuously mix this stratified air, reducing heating system runtime by 20–30% and delivering significant savings throughout colder months. - Can HVLS fans perform effectively in facilities with overhead cranes or mezzanine floors?
Yes, but placement requires careful planning. Overhead crane travel paths must be fully mapped before fan positioning is finalized. Mezzanine floors create two separate airspace zones, each needing independent fan sizing; treating the space as uniform will result in underperformance. - My facility has non-uniform ceiling heights across different zones. Does that complicate installation?
It does, but it is manageable with a thorough site assessment. Each zone with a distinct ceiling height is treated as a separate specification problem. Using one fan size across the entire facility in this scenario will leave some zones meaningfully underserved.
